SONY307 36X Zoom 1080P AHD PTZ Speed Dome Camera Support CVI/TVI/CVBS

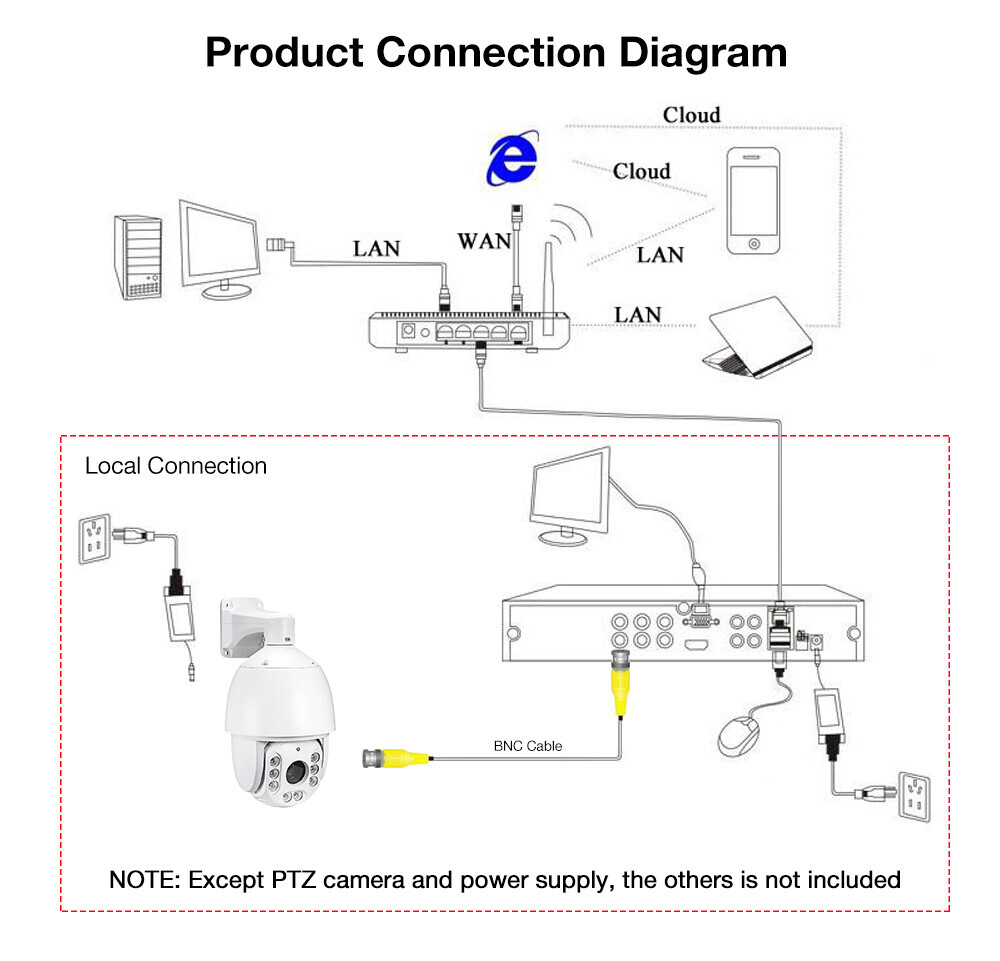

-AHD products does not need RS485, does not need to set baud rate address, does not need to set the DVR, the connection video line is the direct control PTZ.
-4 in 1 ：AHD/TVI/CVI/ANALOG
-IR features: 8Pcs OSRAM LEDs， IR distance：100-150m
-Full metal aluminum die-casting, all-weather environment design, high and low temperature resistant, waterproof to IP66.
-Using high precision synchronous reduction motor, with high performance motor drive, control precision, stable movement, small vibration.
-IR features: 3 groups of lighting control, auto-switch to long/middle/close distance focus
-360° continuous rotation, no monitoring blind area.
-Horizontal Rotation Speed 0.1°~60°/s, Vertical rotation speed 0.1°～60°/s.
-255 presets, the positioning accuracy of 0.5 degrees.
-Support: Guard position/Power up Action /Park action/3 groups Tours /Pattern/Area scanning/360° horizontal scanning.

Technical parameter

iB-MU20W-AHD36X

sensor

1/2.8" CMOS   2441+sony307

Definition

2．0M  pixels  1920（H）X 1080（V）

Video System

PAL/NTSC

Minimum illumination

colour ：0.01Lux   B/W：0.001Lux

Video output

AHD-H(1Vp-p 75Ω)

noise-signal ratio

≥50DB

Lens

lens

36X Optical zoom

Function

IR control

Depending on the focal length

IR distance

100-150m

Rotation range

Vertical：0°～360°； Horizontal：-15°～90°

Rotational speed

Keying: Vertical：0°～60°/s； Horizontal：0°～60°/s

Presets

255

Cruise scan

4 （ Each set of 10 preset positions, the residence time can be adjusted ）

Area scanning

Support

Horizontal scanning

Support

Park  action

Preset / Area scanning / Horizontal scanning / Cruise scan

INPUT/OUTPUT

Analog video output

1.0Vpp/75Ω,NTSC or PAL,BNC Interface

control interface

Support:1. Coaxial control  2.RS485

General

Power

DC12V-3A

Power Consumption

>20W

Operating environment

temperature -20～60℃； humidity ＜90%

waterproof

IP66

material quality

Metal aluminum

GW

2.0kg （Single package）
